Introduction

Hotline has united its legendary dependability with the latest technology to bring you the impressive Phoenix series of electric fence energisers providing an unprecedented level of electric fence control.

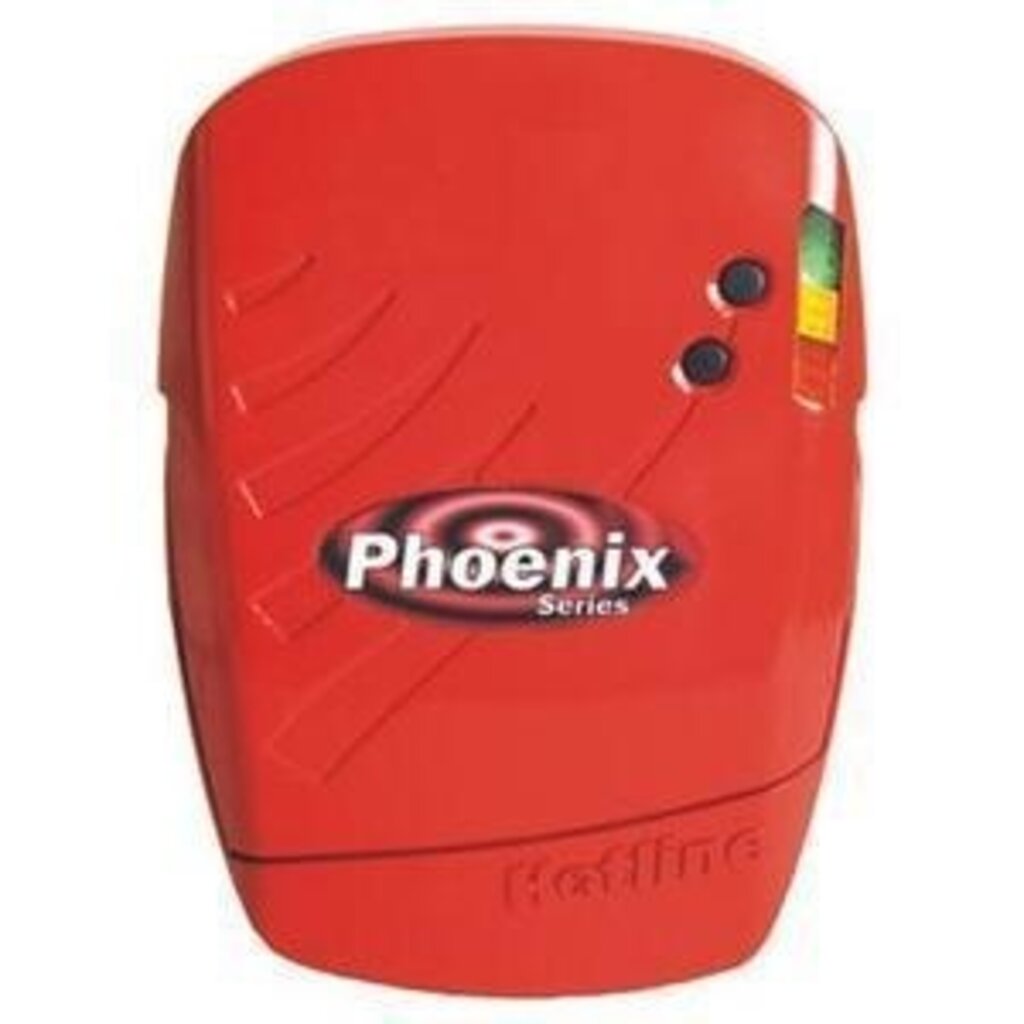

With 5 stored joules, the 12v Phoenix HB500 is a cost effective and high powered, portable electric fence energiser for use where mains power is unavailable. The Battery powered Phoenix models incorporate a programmable power saving facility. Driven by daylight sensors, this feature enables you economically direct power to the fence at the most effective time. The battery models also feature the three-colour 'status' bar graph.

All of the Phoenix energisers feature a drop down cover, which safely conceals the terminals and protects the user from unexpected shocks and also a three colour 'fence status' LED bar graph.

• Model: Phoenix HB500 Battery Powered Energiser.
• Power: 5 stored joules.
• Maximum Recommended Length of Fence (Single Line): 35 kilometres
• Suitable for: All types of use where mains is unavailable and high power is required.
• Power Source: 12 volt deep cycle battery (not included).
• Visual: Front mounted LED Bar graph fence status indicator.
• Other Features: Day / Night economy sensor, three battery save options for extended battery life, lightning protection, drop down terminal cover.

Order Button at bottom of page.

Phoenix Energiser Operation - User Interface



There is a three colour, status bar graph, light display on the front of the Phoenix energiser that gives a 'quick glance' indication of how efficiently the electric fence is operating.

• Red Light - The fence line needs attention.
• Yellow Light - The energiser is coping with online vegetation ensuring the necessary voltage on the fence line.
• Green Light - Sufficient voltage is being delivered to the fence line.

Fence Performance Monitoring

To enable the battery powered Phoenix energisers to 'collect' relevant information from the fence for the status bar, the energisers have four terminals.

• Earth – The ground stake or connection.
• Reference Earth – Reference Earth stake to monitor earth quality.
• Fence output – Energiser Output to the fence.
• Fence Return – Monitors voltage at the end of the fence. (Used when the fence is connected in a closed loop).

Day & Night Power Saving Modes

The day / night mode is set according to the time when the greater level of security is required.

1. Normal mode (day mode) - 1 pulse per second.
2. Permanent Battery save mode - 1 pulse per 3 seconds.
3. Day / Night mode 1 - 1 pulse per second in daylight and 1 pulse per 3 seconds at night.
4. Day / Night mode 2 - 1 pulse per second at night and 1 pulse per 3 seconds in daylight.

Lightning Protection

An internal spark gap is fitted in the energiser in close proximity to the fence terminals that diverts high voltage to the earth. Internal circuitry is protected with transient voltage suppressors.

Please refer to the section 'Installation of Mains Energisers' in our Guide to understanding modern electric fences for more information on connecting your energiser.

* Voltage Limited to 8500v at fence loads lower than 500 ohms.

Hotline Electric Fence Energisers are supplied with required cables for connection to battery as standard.

Recommended Options:

• To create Earth Return system the Heavy Duty Earth Spike & Clamp.
• To protect your energiser from theft or vandalism consider using the VP1 Energiser Box.
• For a reliable power source the LS85 sealed 12v 85amp/hr energiser battery.
• To help quickly locate a fault on a long fence use a good quality tester such as the V10 Electric Fence Fault Finder.
